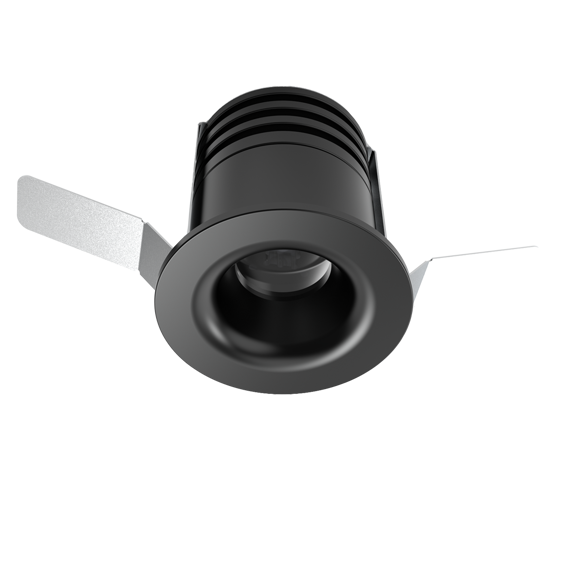

Stretto Deep

Sıva Altı Downlight & Spot Armatür

Optik
15° 40° 90° Lens

Işık Akısı
80 lm

Tüketim Gücü
1 W

Işık Renk Sıcaklığı (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 02 70KLED ömrü
Renk Seçenekleri
RAL 9005
RAL 9010
RAL 9006
Ürün Özellikleri
  • Armatür Grubu Downlight & Spot
  • Montaj Tipi Sıva Altı
  • Armatür Rengi RAL 9005 - RAL 9010 - RAL 9006
  • Gövde Alüminyum Ekstrüzyon
  • Optik 15° 40° 90° Lens
  • Işık Kaynağı LED
  • Elektriksel Koruma Sınıfı CLASS II
  • IP 40
  • IK 02
  • Çalışma Sıcaklığı -20°C / +40°C
  • Işık Akısı 80 lm
  • Tüketim Gücü 1 W
  • Armatür Verimliliği 80 lm/W
  • Renksel Geri Verim (CRI) >80
  • Işık Renk Sıcaklığı (CCT) 2700K/3000K/4000K/6500K
  • Renk Toleransı < 3 SDCM
  • Driver Tipi On/Off
  • Driver Markası Tridonic
  • LED Markası Samsung
  • Giriş Gerilimi / Frekans 220-240 V AC 50/60 Hz
  • Güç Faktörü >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED ömrü >70.000 saat
  • Opsiyon On-Off / Dali / 1-10V / Acil Durum Kitli

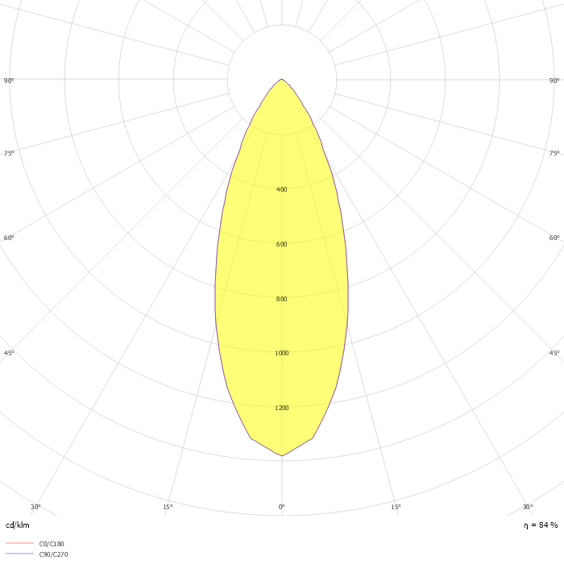

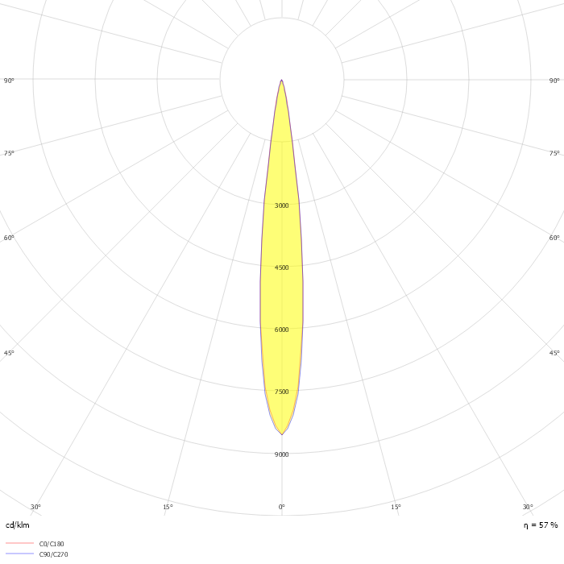

Optik
14º40º
Önceki
Önceki
Ölçüler
Stretto Deep (2)
Ürün Varyasyonları
Sipariş Kodu Ürün Kodu Güç (W) Işık Akısı (LM) CCT (K) Optik Ölçüler (mm) Datasheet Şartname Metni
SDP 004 003 001A 8040 10 15 LN 40 00 1 80 4000 15° Lens Ø29x22 Datasheet Şartname Metni
13004190 SDP 004 003 001A 8040 10 40 LN 40 00 1 80 4000 40° Lens Ø29x22 Datasheet Şartname Metni
Download
