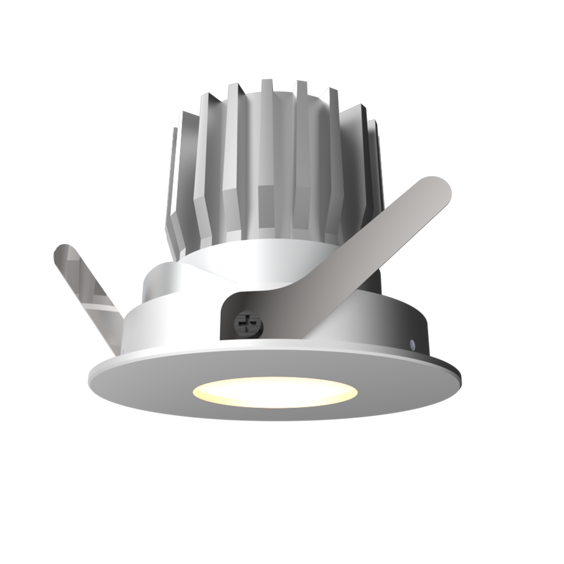

Zagreb 1080X1080

Zagreb

Sıva Altı Downlight & Spot Armatür

Optik
15° 30° 40° Reflektör & Şeffaf Difüzör

Işık Akısı
637 lm / 819 lm / 1183 lm

Tüketim Gücü
7 W / 9 W / 13 W

Işık Renk Sıcaklığı (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 40 IK 02 50K LED ömrü

LED ömrü

Renk Seçenekleri

RAL 9005

RAL 9010

RAL 9006

Ürün Özellikleri

Armatür Grubu Downlight & Spot
Montaj Tipi Sıva Altı
Armatür Rengi RAL 9005 - RAL 9010 - RAL 9006
Gövde Alüminyum Ekstrüzyon
Optik 15° 30° 40° Reflektör & Şeffaf Difüzör
Işık Kaynağı LED
Elektriksel Koruma Sınıfı CLASS II
IP 40
IK 02
Çalışma Sıcaklığı -20°C / +40°C
Işık Akısı 637 lm / 819 lm / 1183 lm
Tüketim Gücü 7 W / 9 W / 13 W
Armatür Verimliliği 91 lm/W
Renksel Geri Verim (CRI) >80
Işık Renk Sıcaklığı (CCT) 2700K/3000K/4000K/6500K
Renk Toleransı < 3 SDCM
Driver Tipi On/Off
Driver Markası Tridonic
LED Markası Samsung
Giriş Gerilimi / Frekans 220-240 V AC 50/60 Hz
Güç Faktörü >0.9
Surge 1kV
THD (AKIM) >%20
LED ömrü >50.000 saat
Opsiyon On-Off / Dali / 1-10V / Acil Durum Kitli

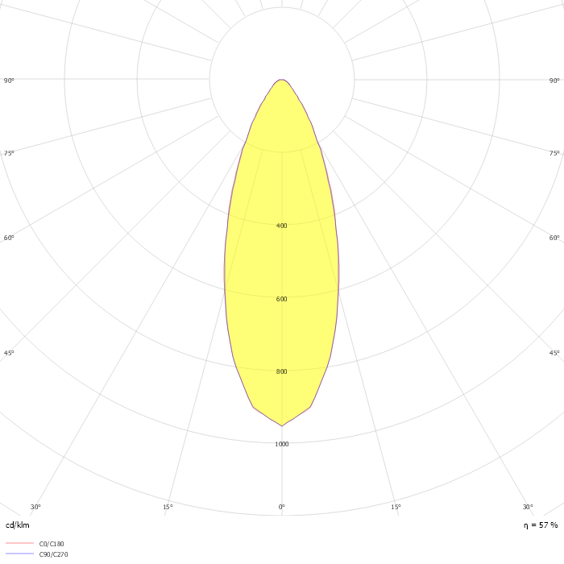

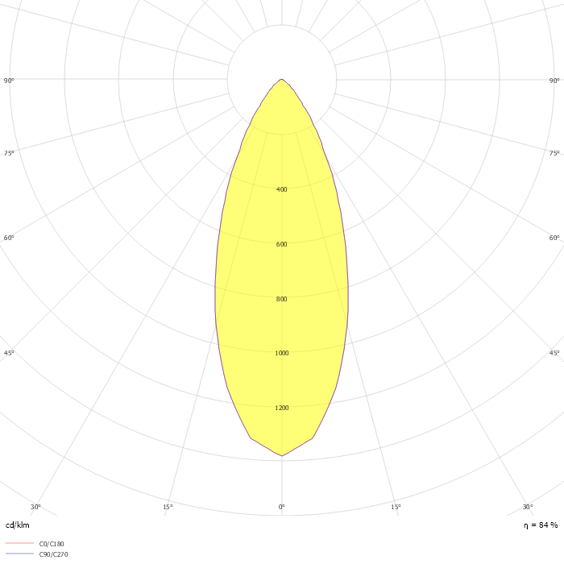

Optik

Ölçüler

Zagreb Teknik (1)

Ürün Varyasyonları

Sipariş Kodu	Ürün Kodu	Güç (W)	Işık Akısı (LM)	CCT (K)	Optik	Ölçüler (mm)	Datasheet	LDT	Şartname Metni
13003938	BDP 009 007 007A 9040 10 15 SD 44 RT	7	637	4000	15° Reflektör	Ø92
13003954	BDP 009 007 007A 9040 10 30 SD 44 RT	7	637	4000	30° Reflektör	Ø92
13003970	BDP 009 007 007A 9040 10 40 SD 44 RT	7	637	4000	40° Reflektör	Ø92
13003986	BDP 009 007 009A 9040 10 15 SD 44 RT	9	819	4000	15° Reflektör	Ø92
13003926	BDP 009 007 009A 9040 10 30 SD 44 RT	9	819	4000	30° Reflektör	Ø92
13004015	BDP 009 007 009A 9040 10 40 SD 44 RT	9	819	4000	40° Reflektör	Ø92
13004031	BDP 009 007 013A 9040 10 15 SD 44 RT	13	1183	4000	15° Reflektör	Ø92
13004046	BDP 009 007 013A 9040 10 30 SD 44 RT	13	1183	4000	30° Reflektör	Ø92
13004061	BDP 009 007 013A 9040 10 40 SD 44 RT	13	1183	4000	40° Reflektör	Ø92
