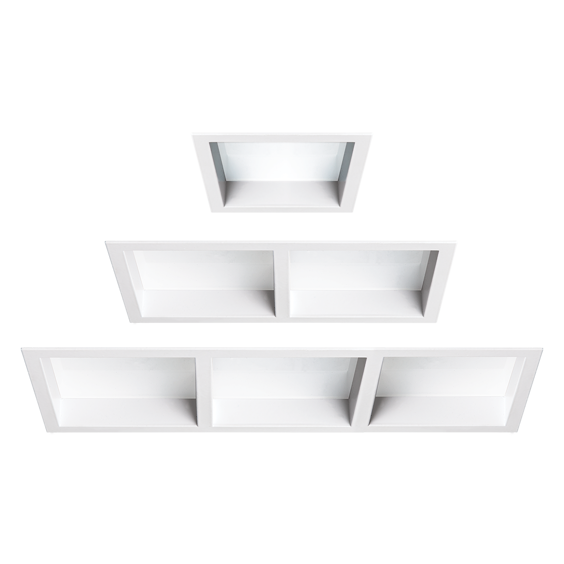

Squarelevel 1080X1080

Square Level

Sıva Altı Downlight & Spot Armatür

Optik
Opal Difüzör

Işık Akısı
810 lm / 1620 lm / 2430 lm

Tüketim Gücü
9 W / 18 W / 27 W

Işık Renk Sıcaklığı (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 20 IK 02 70K LED ömrü

LED ömrü

Renk Seçenekleri

RAL 9005

RAL 9010

RAL 9006

Ürün Özellikleri

Armatür Grubu Downlight & Spot
Montaj Tipi Sıva Altı
Armatür Rengi RAL 9005 - RAL 9010 - RAL 9006
Gövde Alüminyum Dkp Sac
Optik Opal Difüzör
Işık Kaynağı LED
Elektriksel Koruma Sınıfı CLASS II
IP 20
IK 02
Çalışma Sıcaklığı -20°C / +40°C
Işık Akısı 810 lm / 1620 lm / 2430 lm
Tüketim Gücü 9 W / 18 W / 27 W
Armatür Verimliliği 90 lm/W
Renksel Geri Verim (CRI) >80
Işık Renk Sıcaklığı (CCT) 2700K/3000K/4000K/6500K
Renk Toleransı < 3 SDCM
Driver Tipi On/Off
Driver Markası Tridonic
LED Markası Samsung
Giriş Gerilimi / Frekans 220-240 V AC 50/60 Hz
Güç Faktörü >0.9
Surge 1kV
THD (AKIM) >%20
LED ömrü >70.000 saat
Opsiyon On-Off / Dali / 1-10V / Acil Durum Kitli

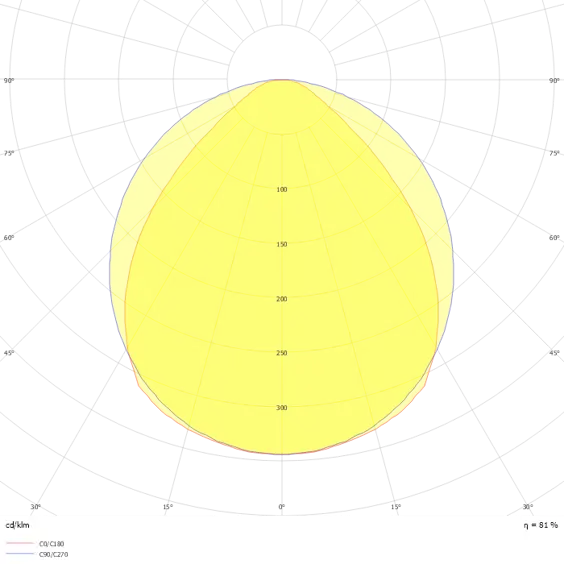

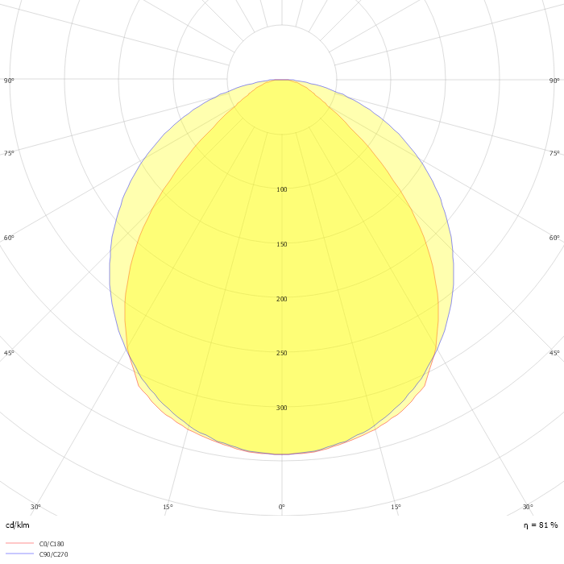

Optik

110º

Ölçüler

Square Level Tekli (1)

Square Level Üçlü (1)

Square Level İkili (1)

Ürün Varyasyonları

Sipariş Kodu	Ürün Kodu	Güç (W)	Işık Akısı (LM)	CCT (K)	Optik	Ölçüler (mm)	Datasheet	Şartname Metni
13503105	SQL 012 009 009A 8040 10 99 OP 20 00	9	810	4000	120° Difüzör	120x120x92
13503129	SQL 021 009 018A 8040 10 99 OP 20 00	18	1620	4000	120° Difüzör	210x120x92
13503153	SQL 027 009 027A 8040 10 99 OP 20 00	27	2430	4000	120° Difüzör	300x120x92

Download

Bilgi dokümanı oluştur (pdf)

Benzer Ürünler

Budapeşte 1080X1080

Budapeşte Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Budapeste A 1 1080X1080

Budapeşte A Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Rainbow Beyaz 1080X1080

Rainbow Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Sole 1080X1080 1

Sole Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Recta 1080X1080

Recta Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Solemandarin 1080X1080 2

Sole Mandarin Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

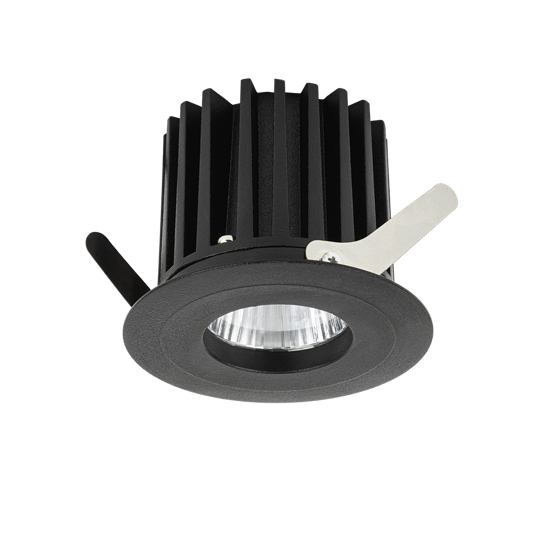

Sturdy S 1080X1080 1

Sturdy S Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

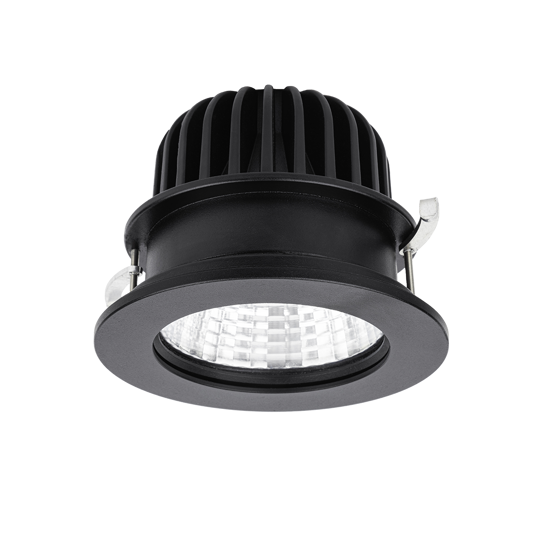

Sturdy M 1080X1080 1

Sturdy M Downlight & Spot Sıva Altı RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

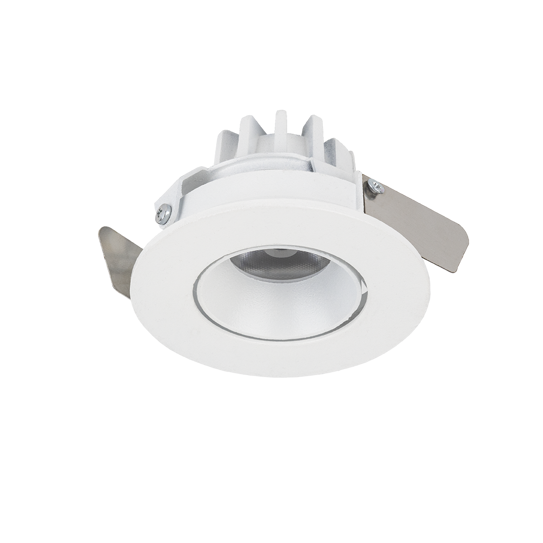

Wina S Hareketli 1080X1080 1

Wina S HR Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

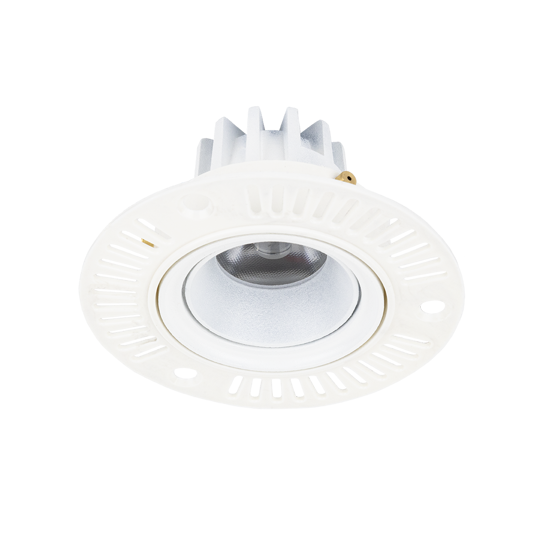

Wina Trimless Hareketli 1080X1080

Wina S TH Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

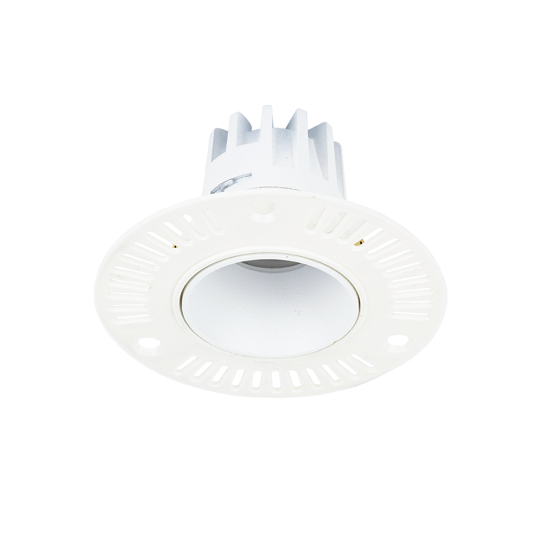

Wina Sabit Trimless 1080X1080

Wina S TS Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

Wina M 1080X1080

Wina M Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

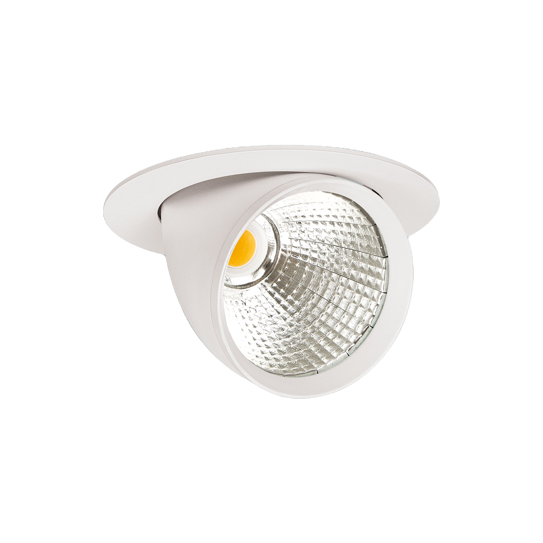

Helix 1080X1080

Helix Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

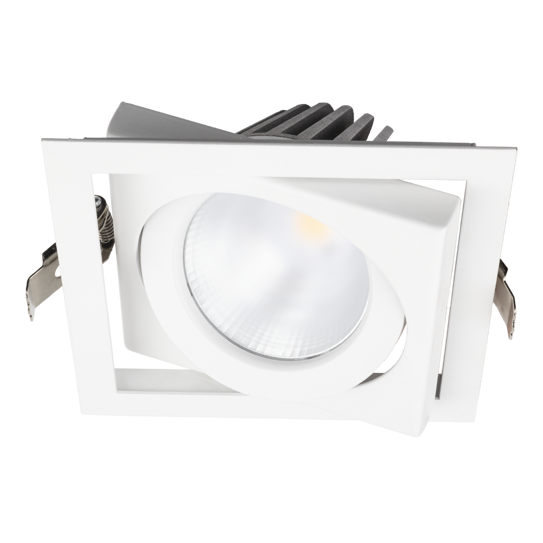

Parent Beyaz Tekli 1080X1080

Parent I & II Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

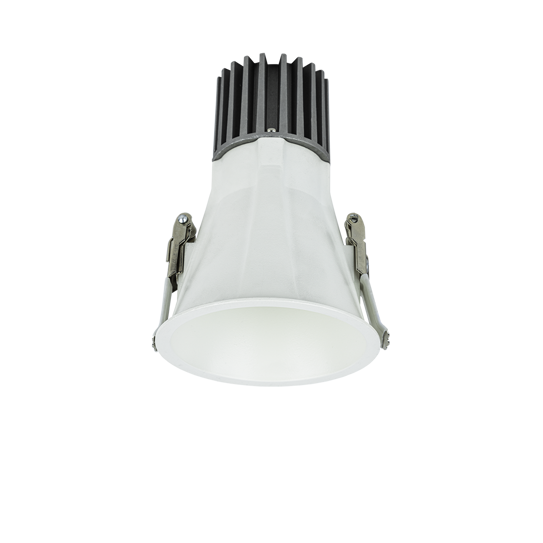

Rainbow Deep 1080X1080

Rainbow Deep Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9006/RAL 9016
2700K/3000K/4000K/6500K

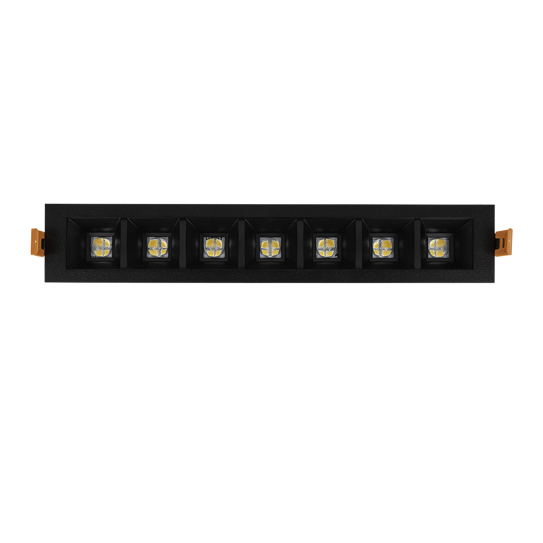

Sharp R 3 1080X1080

Sharp R Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

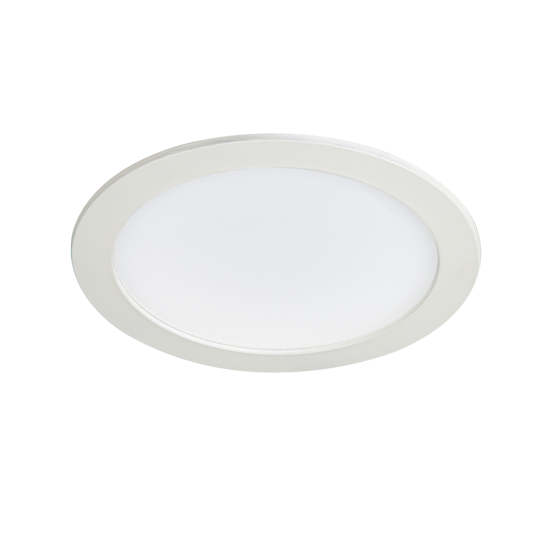

Solid 1080X1080 1

Solid Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

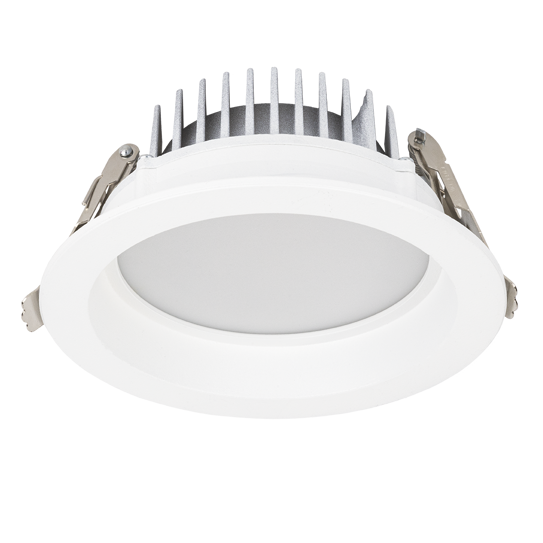

Solid Level 1080X1080 1

Solid Level Downlight & Spot Sıva Altı RAL 9010/RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

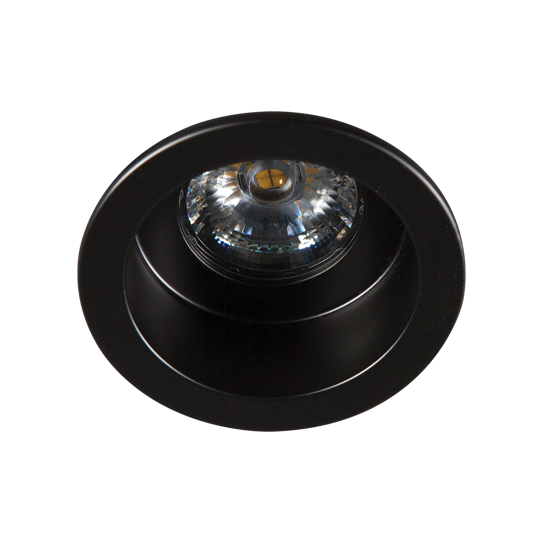

Eye M 1080X1080

Eye M Downlight & Spot Sıva Altı RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

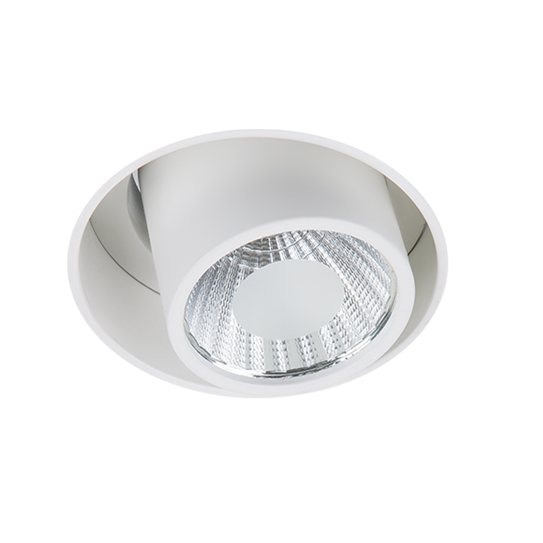

Beetle 1080X1080

Beetle Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

Flus Recessed Render 1080X1080

Flus Recessed Series Downlight & Spot Sıva Altı RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

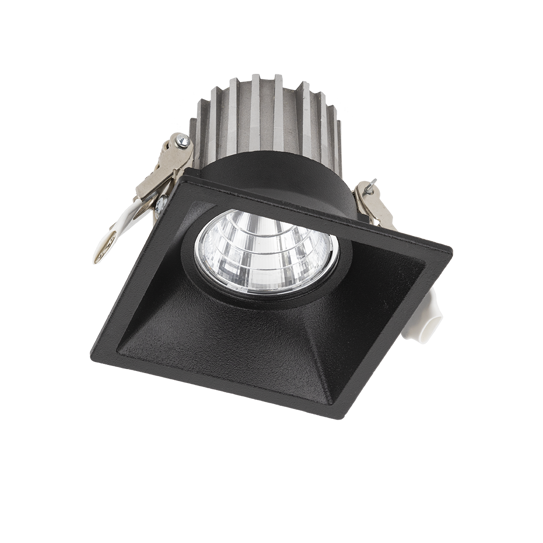

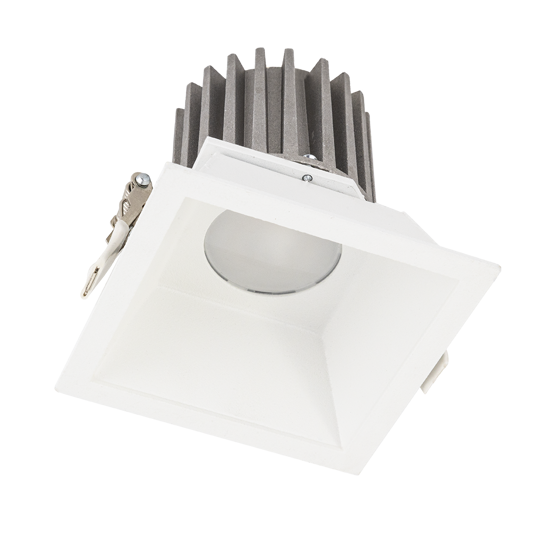

Motus Siyah 1080X1080

Motus S Downlight & Spot Sıva Altı RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

Motus M Downlight & Spot Sıva Altı RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

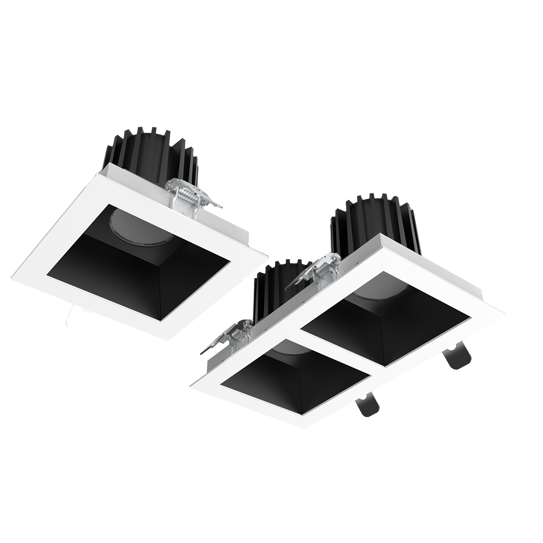

Oblong 1080X1080

Oblong I Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

Oblong 1080X1080

Oblong II Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

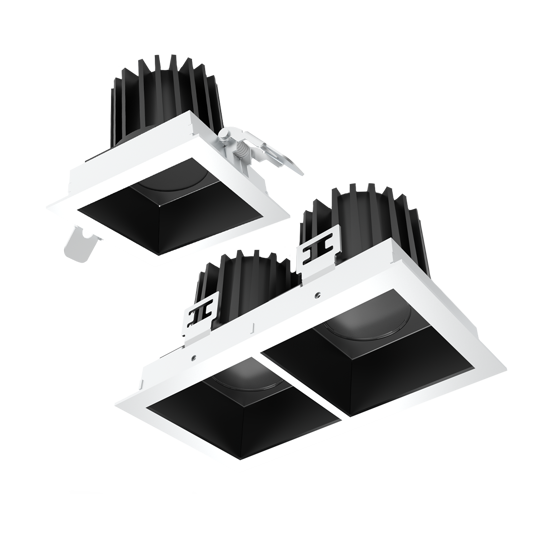

Oblongmini 1080X1080

Oblong Mini I Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

Oblongmini 1080X1080

Oblong Mini II Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

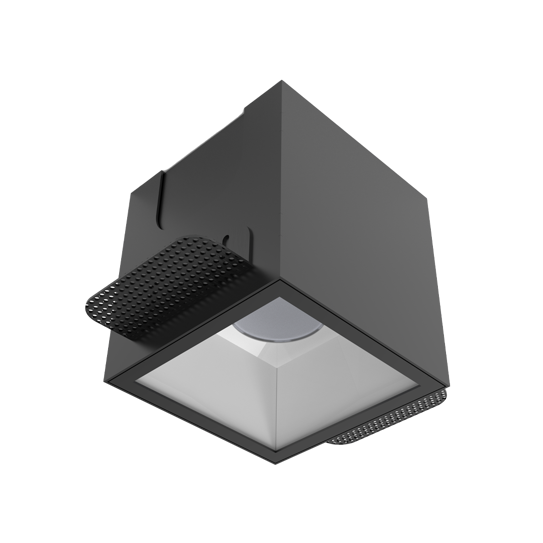

Ozzo Trimless. 1080X1080

Ozzo Trimless Downlight & Spot Sıva Altı RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

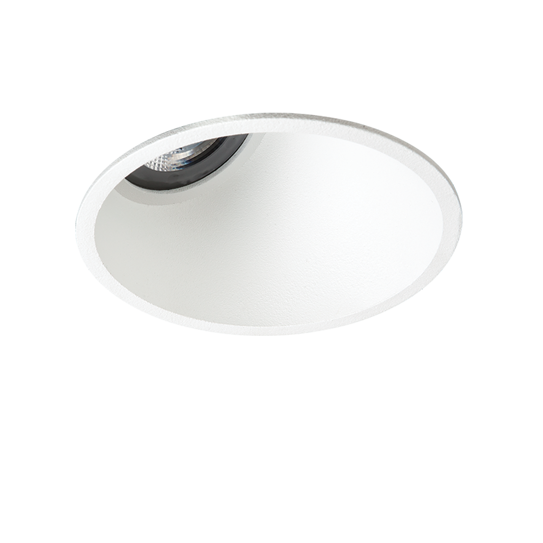

Pain Downlight & Spot Sıva Altı RAL 9005/RAL 9010
2700K/3000K/4000K/6500K

Pure M 1080X1080

Pure M Downlight & Spot Sıva Altı RAL 9005/RAL 9010
2700K/3000K/4000K/6500K

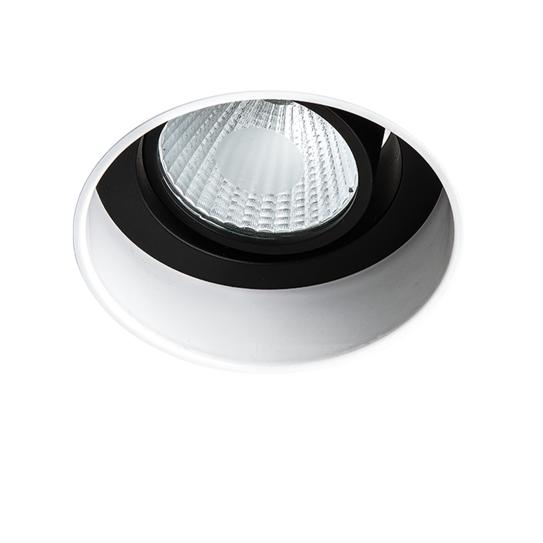

Pure L 1080X1080

Pure L Downlight & Spot Sıva Altı RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

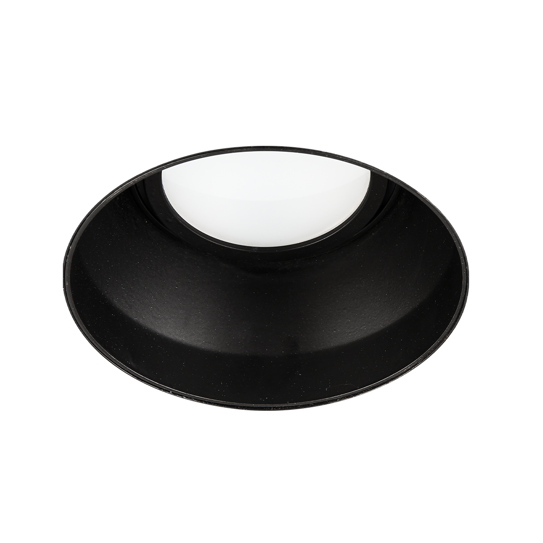

Space 1080X1080

Space Downlight & Spot Sıva Altı RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

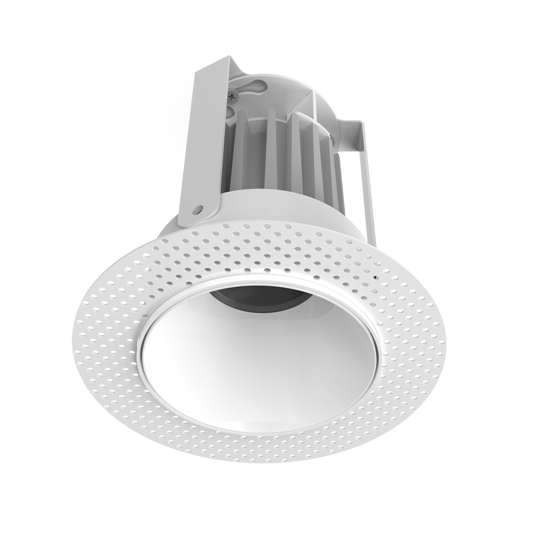

Space Mini 1080X1080
